A Flashlight Story

Back in May of this year, in preparation for a campout, I bought a nice looking LED headband flashlight at Walmart. It's a Garrity light and it ran me about $13. I used it on the campout and fell in love. It was incredibly light-weight and I soon forgot it was on my head, yet it was plenty bright (click these images for larger versions).

After the campout it sat in a drawer for a few days before I had occasion to use it again. When I pulled it out of said drawer and pushed the button to turn it on, nothing happened. Saddened, I figured it must have been bumped and turned on while in the drawer or maybe one of my boys had found it and left it on. I bought new batteries and used it while performing some bicycle maintenance in my dimly lit garage late one night. I put it away high on a shelf away from any bumps or curious hands afterwords. A few days later, the batteries were dead again. I've gotta return this defective thing to Walmart, I thought to myself, but never found the time. Here it is 6 months later, I have not package nor receipt, and I'm afraid I still don't have the desire to venture back into Walmart only to be rejected for my $13 return.

Instead, I decided that there was a remote chance I could fix it myself. Even with my basic EE knowledge and caveman electrical tools (Radio Shack multi-meter) I should be able to figure this out, I figured. It's just a flashlight. The obvious thing would be a short, right? I extracted the light from the headband:

And opened up the back.

Probing the battery connections, I discovered that with the flashlight sitting off there was 77.5 kOhms of resistance between the two pads, not a completely open circuit, right? That's gotta be it. I inserted some new batteries with the multimeter in series and there was no current draw. Hmm. Well, it takes two CR2032 batteries for a voltage of 6V. I don't know what to use for their internal resistance, but even assuming none, V/R give us:

6V / 77500 Ohms = 77.4 microamps.

My meter doesn't exactly go into the microamp range so maybe... Another thing to consider is this isn't a mechanical switch so maybe that's not a straight up resistance I was measuring anyway. I found a datasheet online just for furn and read that these little batteries have a 220 mAh capacity. I believe the calculation for two batteries supplying 77.4 microamps would be (Note the correction: two batteries in series does not double the current. Thanks, Nols):

(.220 * 2 Ah) / .0000774 amps = 5684.75 2842.38 hours

So that could be draining the batteries while the light is off, but it would take more than a couple days. Maybe that's not actually the problem. For fun I measured the current used when the light was on. The numbers weren't as memorable and I wasn't thinking blog entry at that point, so I didn't write them down. I think it was about 60 milliamps on the low setting and 100 milliamps on the high setting. Nothing outrageous.

I decided to take it apart. It was a tight little package with no screws, and no good place to pry. After a few minute of frustration I hit it with a blunt object and out popped this black plastic piece:

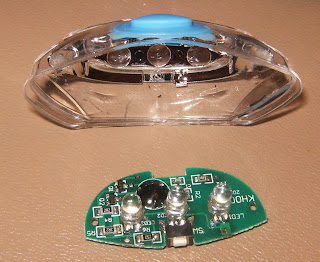

Then I pried out the circuit board.

And at this point I'm kind of at the end of my EE rope. I don't see any obvious shorts sucking current out of my batteries (and my multimeter didn't find any either). I see some transistors, resistors, and caps that are likely the constant current driver circuit for the LEDs (maybe similar to this one, even), and then a blob of epoxy covering something else mysterious but probably benign, and that's about it. No fix, but at least I have some really bright LEDs to play with.

If you have any suggestions on how to debug or fix my battery sucking flashlight feel free to chime in down in the comments. If you are from Garrity, I will blog about how amazing it was that you found my blog and how nice you were to send me a new flashlight. :-)

Comments

Victor said…
I've got a light from Petzl for about $40 and it works ok.



No clues to solve your problem, though...
November 26, 2008 at 11:54 PM
Nolan said…
The resistance of an active circuit is very difficult to measure, and probably impossible to do with a handheld DMM. It's still good to look for shorts that way though :)

When DMM's measure resistance, they turn on a very low constant current source and then measure the voltage and then use Ohm's law to figure out the resistance. This will cause the active circuit to behave a lot differently than putting a 6V battery on it. And you may get a much different amount of leakage with the batteries than the DMM. Whether your DMM can measure it or not, that is another story. And even if it is low like around 1mA, that would change your calculations to how fast it will drain... I realize this wasn't much help, but it may point you in the right direction.
December 2, 2008 at 2:33 PM
